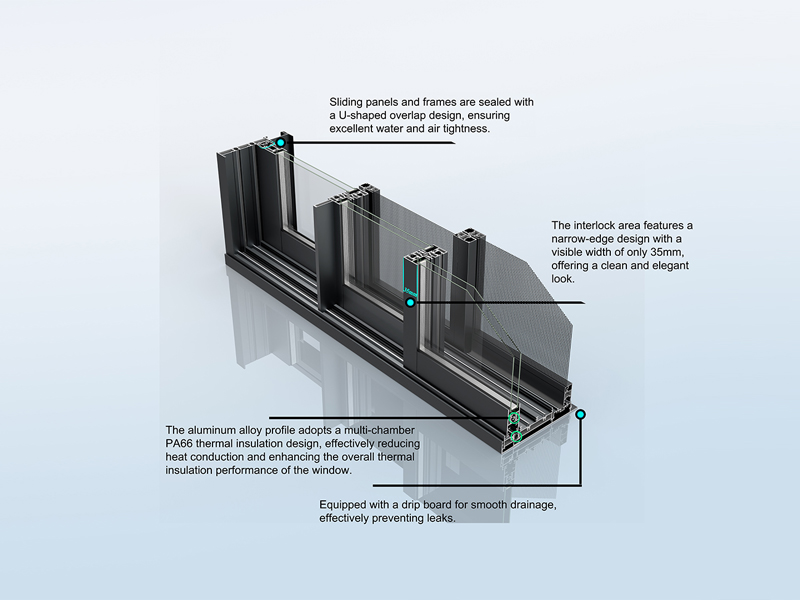

Sliding panels and frames are sealed with a U-shaped overlap design, ensuring excellent water and air tightness.

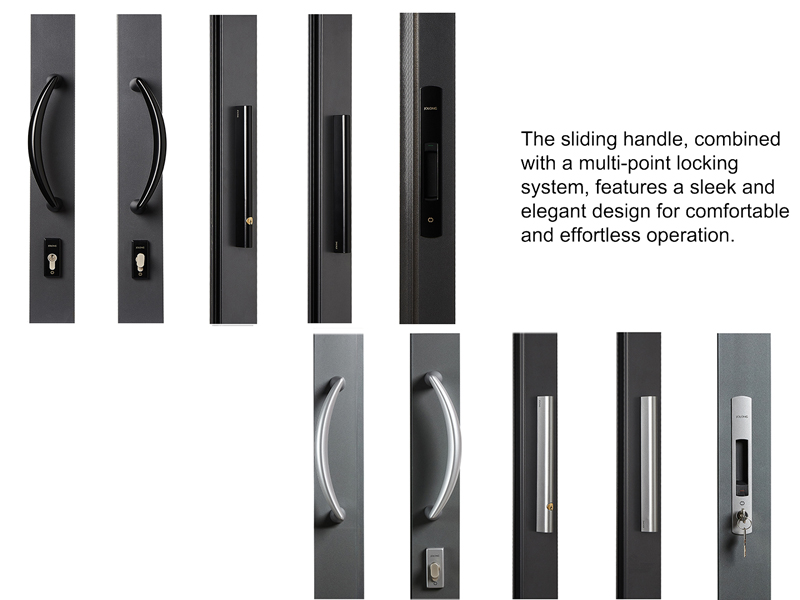

The sliding handle, combined with a multi-point locking system, features a sleek and elegant design for comfortable and effortless operation.

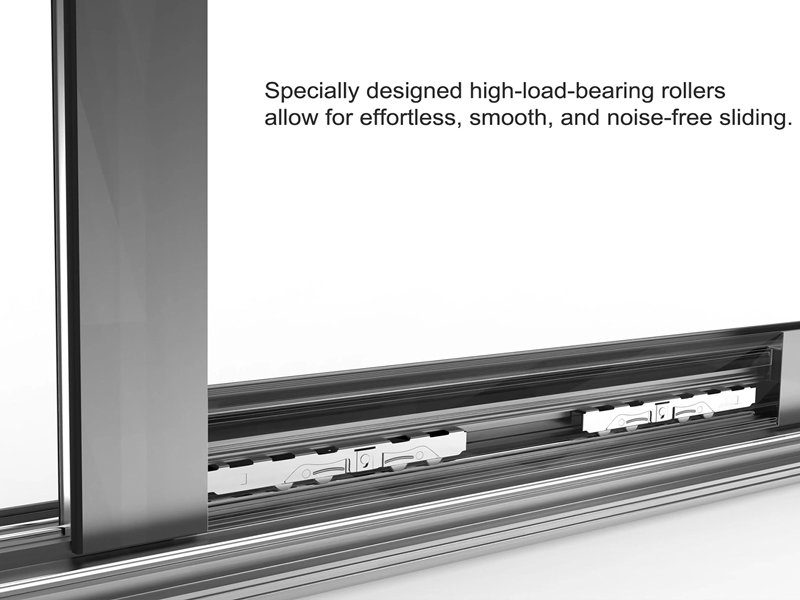

Specially designed high-load-bearing rollers allow for effortless, smooth, and noise-free sliding.

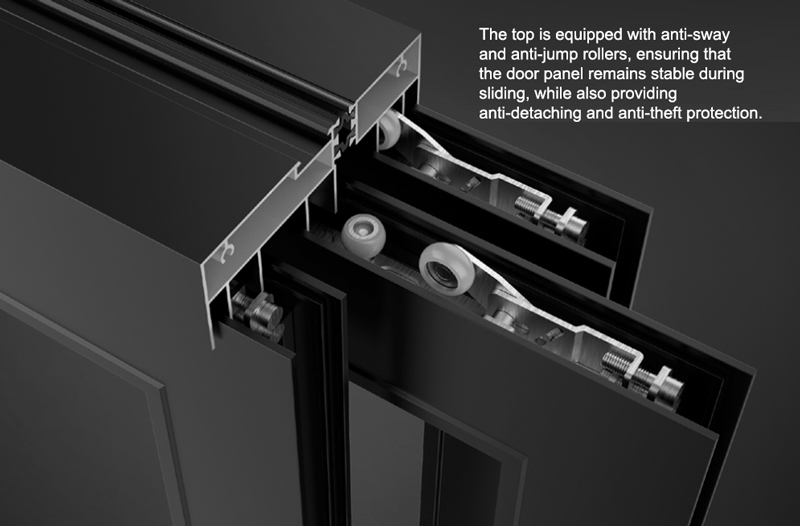

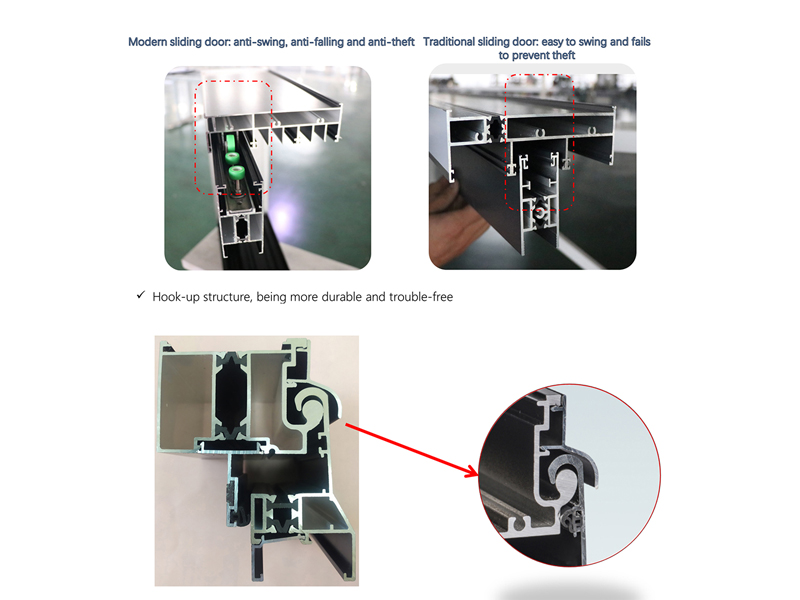

The top is equipped with anti-sway and anti-jump rollers, ensuring that the door panel remains stable during sliding, while also providing anti-detaching and anti-theft protection.
Opening type | Manual sliding door |
Surface treatment | Incorporating electrostatic powder coating surface treatment, with a quality guarantee of 7 years. |
Common color | Monument, black, available in special customized color |
Aluminium Profile thickness | Main profile of 1.8 ~ 2.0 mm |
Thermal insulation design | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Sealing Strips Configuration | EPDM soft and hard combined sealing strip seal with ultra-fine fibre strips |
Glass configuration | Standard 5mm + 12A + 5mm Argon gas filled double glazed, optional total thickness up to 22 ~ 27mm Multi-Argon gas filled glazed |

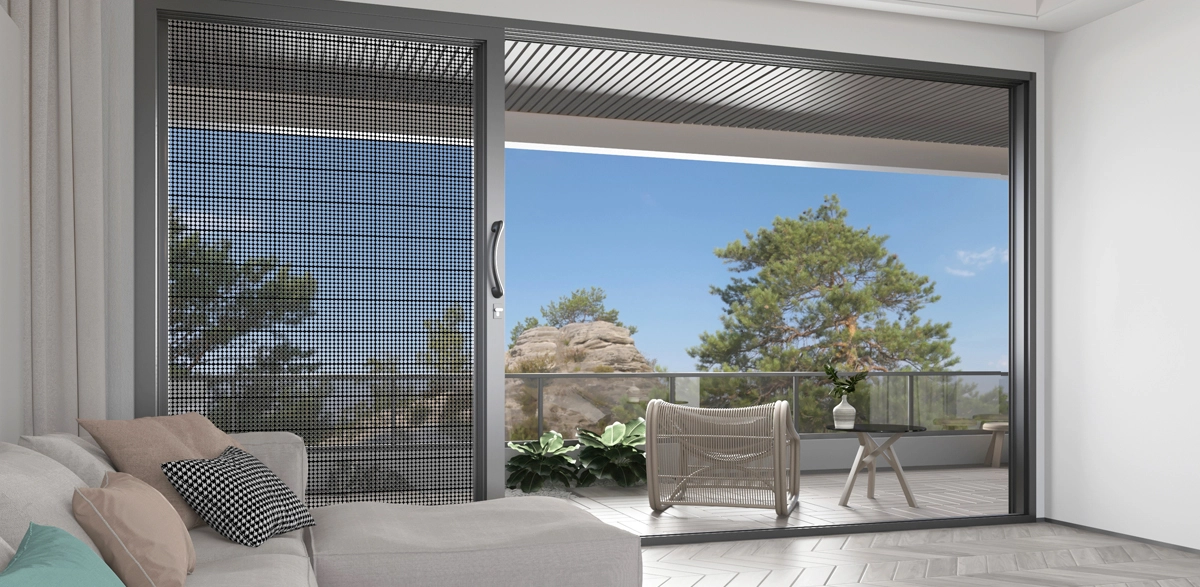

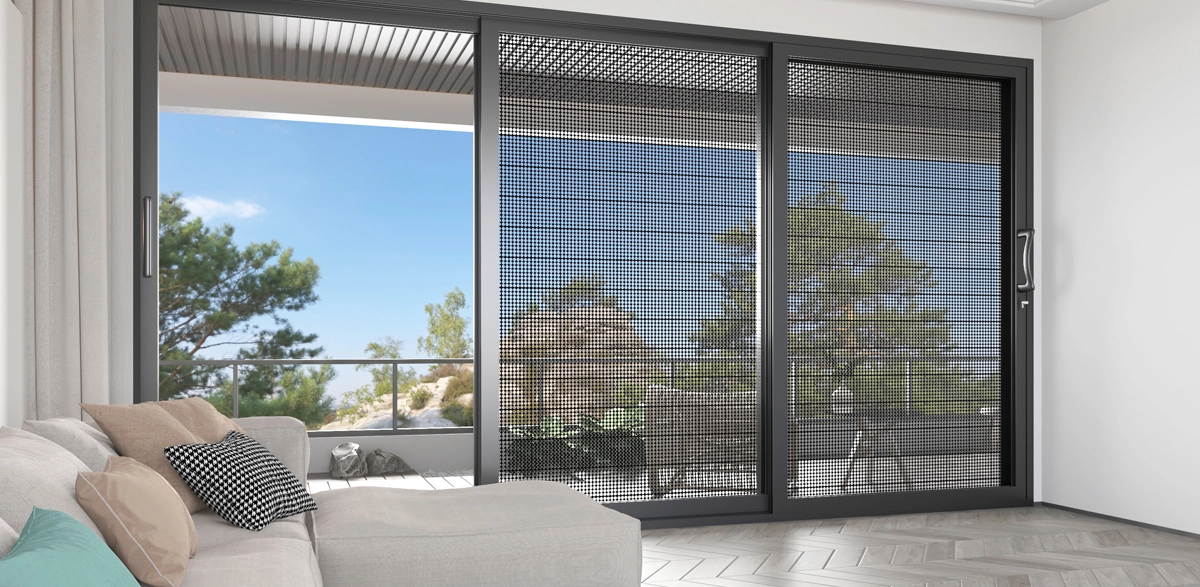

Screen Door Configuration | The 150 and 200 series come standard with screen doors |
Combined U value | Minimum combined U value: 2.4 W / m2 * K |
