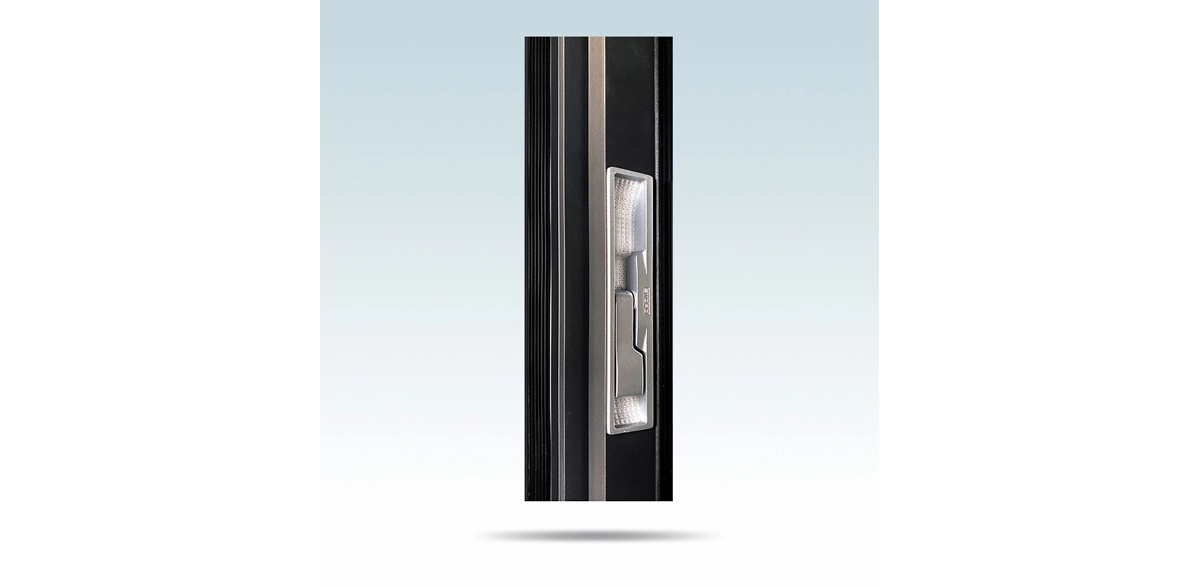

The minimalist and ultra-slim design offers a sleek and elegant look, providing a wider view through the window and enhancing the overall aesthetic of the building.The unique handle-side opening mechanism creates streamlined and clean visible lines for a refined, contemporary look and a fresh opening experience.
Opening type | outward casement /awning |
Surface treatment | Incorporating electrostatic powder coating surface treatment, with a quality guarantee of 7 years. |
Common color | Monument, black, white, available in special customized color |
Aluminium Profile thickness | Main profile of 1.8mm |
Thermal insulation design | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Sealing Strips Configuration | EPDM soft and hard co-extruded sealing strip |
Glass configuration | Standard 5mm + 20Ar + 5mm IGU glazed, optional total thickness up to 30 ~ 40mm Multi-Argon gas filled glazed |
Flyscreen configuration | Optional openable flyscreen((Except for the AE93 series) |
Combined U value | Minimum combined U value: 2.0 W/m2*K |
