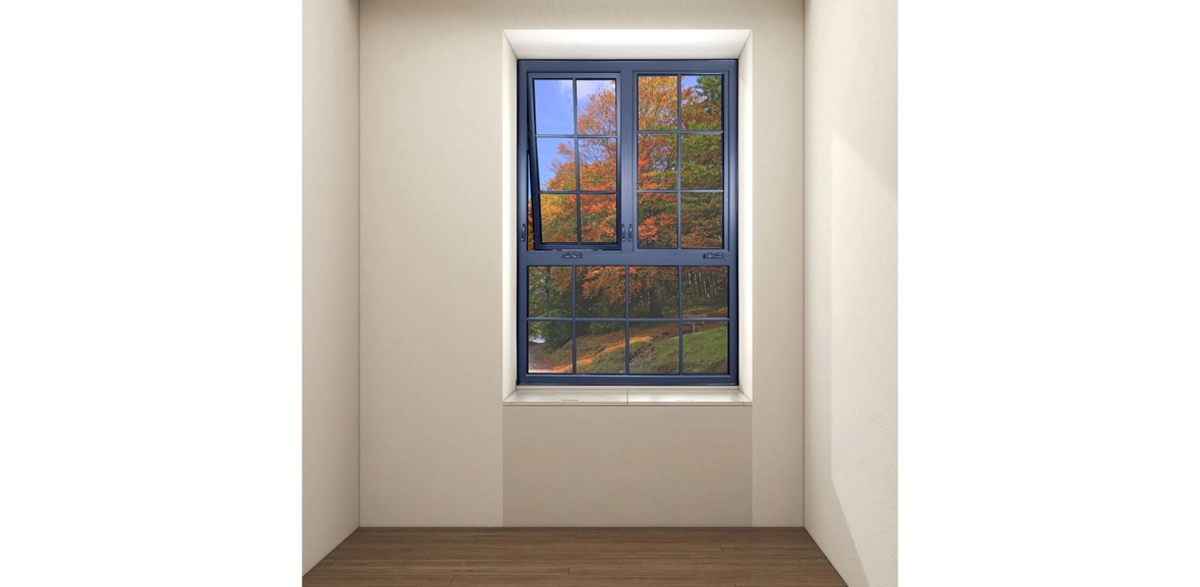

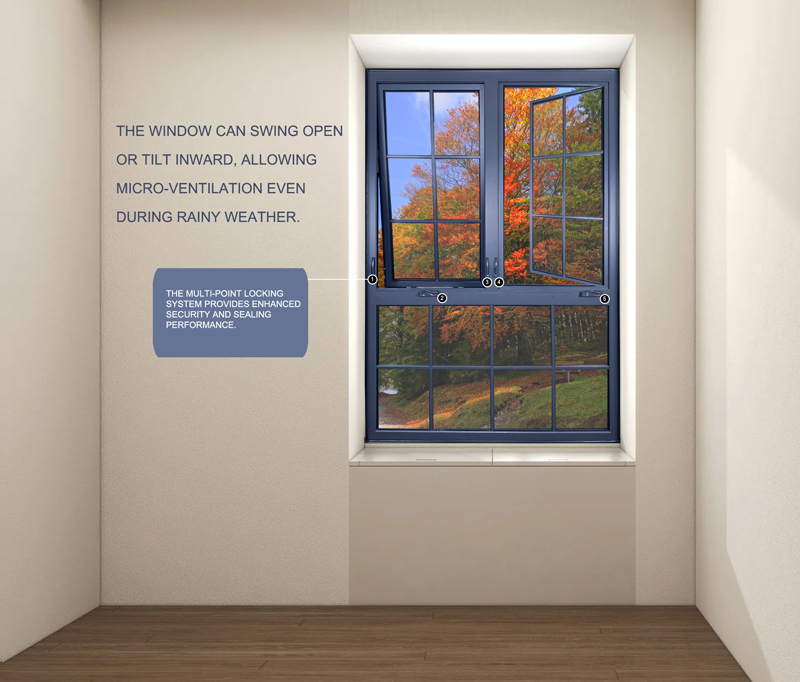

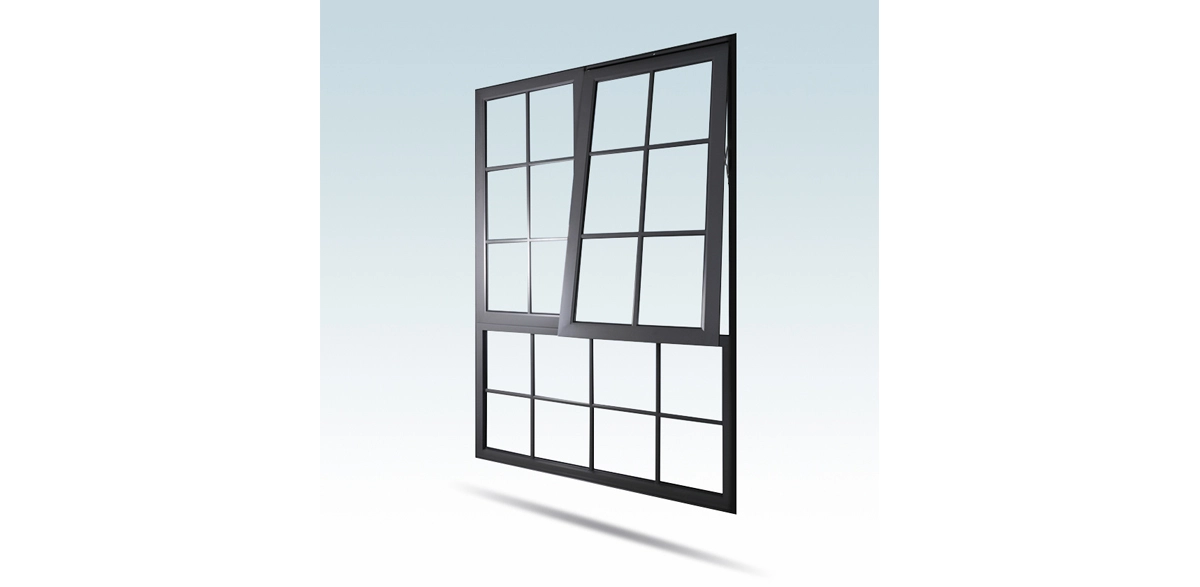

85 SeriesThermalBreakAwningWindow can swing open or tilt inward, allowing micro-ventilation even during rainy weather.The multi-point locking system provides enhanced security and sealing performance.

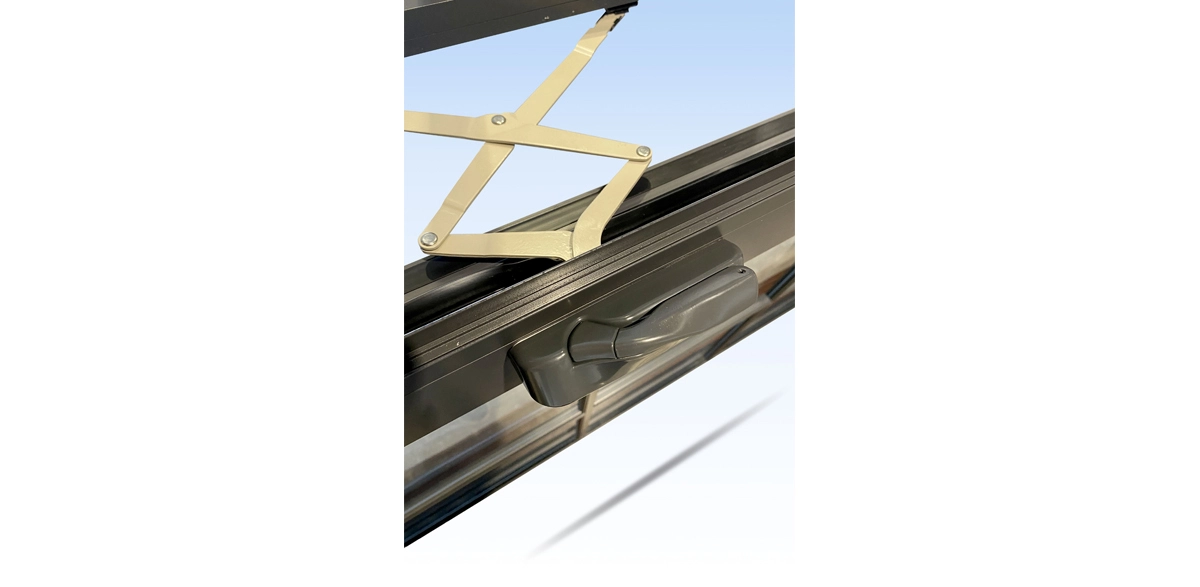

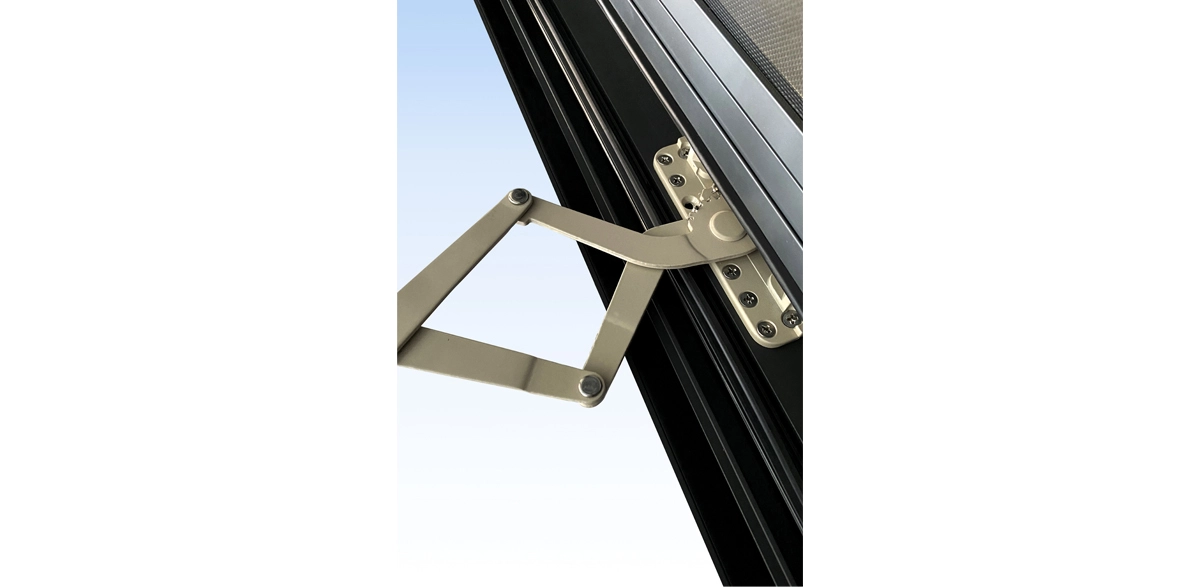

The manual crank opening mechanism allows restriction of the opening size to meet Australian safety standards to ensure daily security.
Opening type | awning window, casement window |
Surface treatment | Utilizing automotive-grade fluorocarbon spray surface treatment, with a quality guarantee of over 15 years |
Common color | Monument, black, white, available in special customized color |
Aluminium Profile thickness | Main profile of 1.8 ~ 2.0 mm |

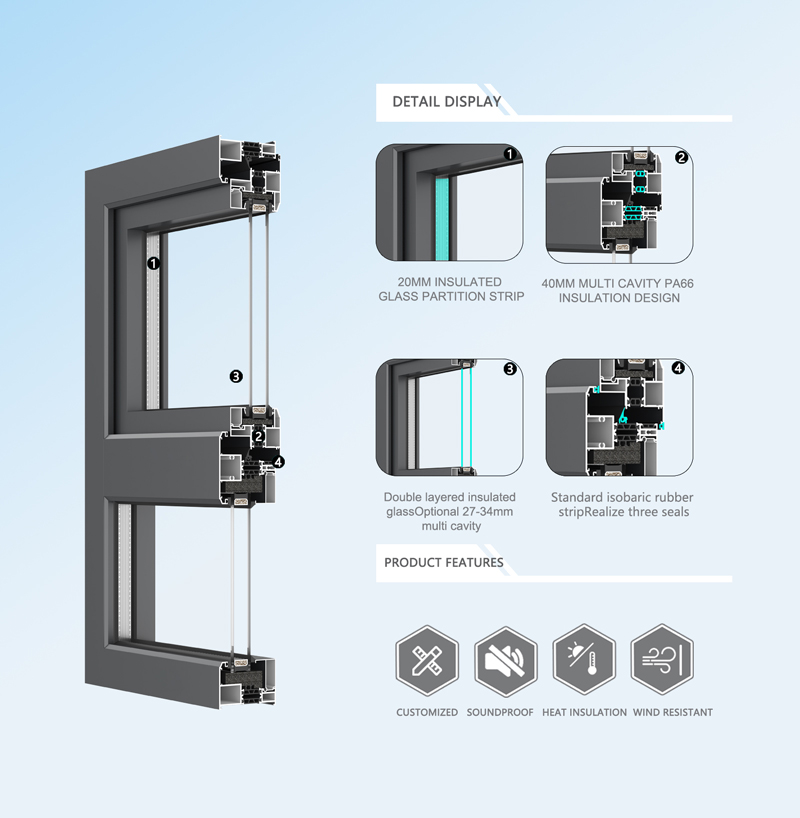

Thermal insulation design | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Sealing Strips Configuration | Standard configuration with EPDM Isobaric sealing strips + EPDM soft and hard combined sealing strip seal Achieve better sealing performance |
Glass configuration | Standard 5mm + 20A + 5mm Argon gas filled double glazed, optional total thickness up to 27 ~ 34mm Multi-Argon gas filled glazed |
Flyscreen configuration | Detachable Flyscreen easy to clean and maintain |
Combined U value | Minimum combined U value: 1.8 W/m2*K |
