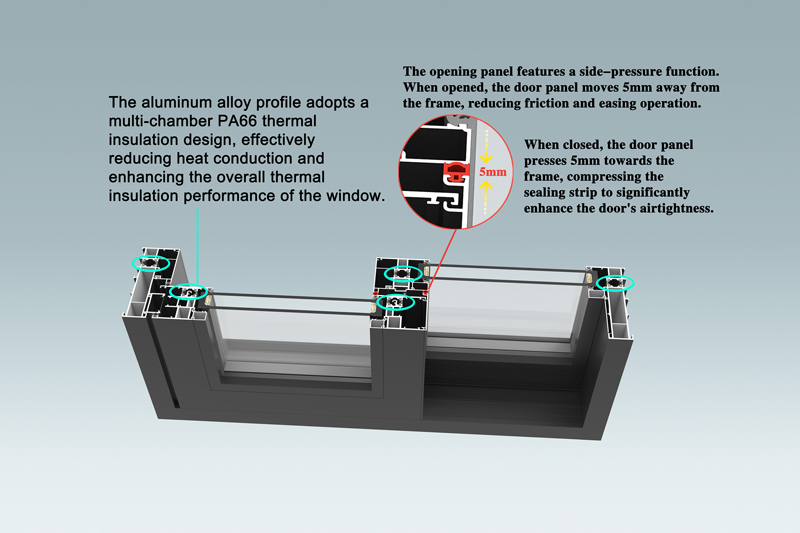

The opening panel features a side-pressure function. When opened, the door panel moves 5mm away from the frame, reducing friction and easing operation.
When closed, the door panel presses 5mm towards the frame, compressing the sealing strip to significantly enhance the door's airtightness.
Opening type | Lateral Compression Sliding door |
Surface treatment | Utilizing automotive-grade fluorocarbon spray surface treatment, with a quality guarantee of over 15 years |
Common color | Monument, black, white, available in special customized color |
Aluminium Profile thickness | Main profile of 2.2mm |
Thermal insulation design | C-type thermal break heat-insulation strips PA66-GF25 |
Sealing Strips Configuration | EPDM soft and hard co-extruded sealing strip |
Glass configuration | Standard：5+20A+5，Optional：5+27A+5 |
Flyscreen | Detachable Folding/ Rolling/ Inward-opening flyscreen |
Combined U value | Minimum combined U value: 2.0 W/m2*K |
