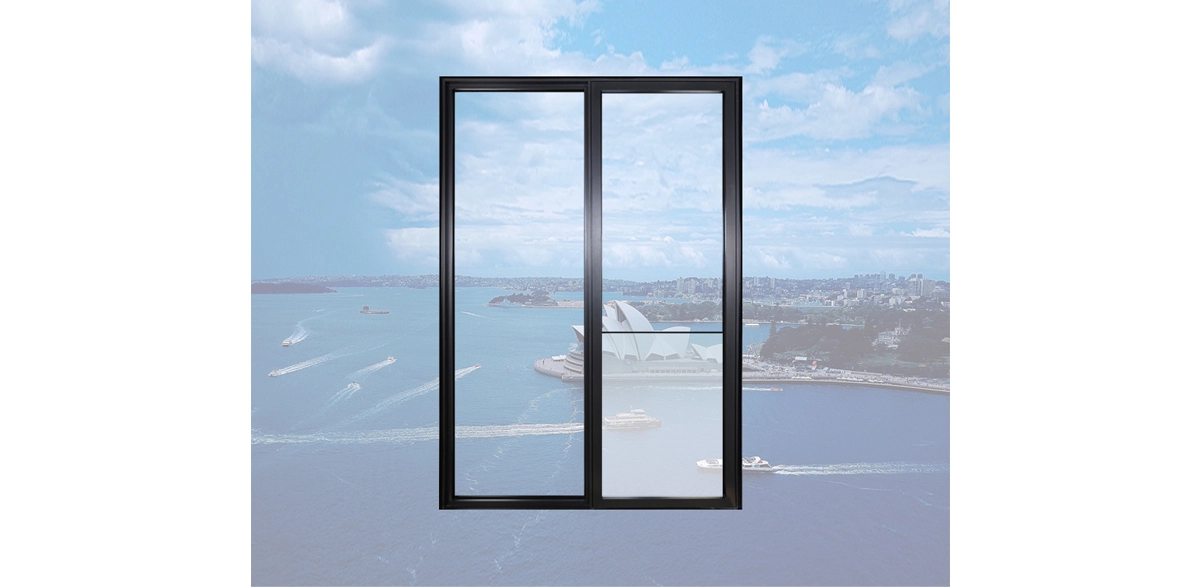

AE118 Series Thermal Break Casement Window Series

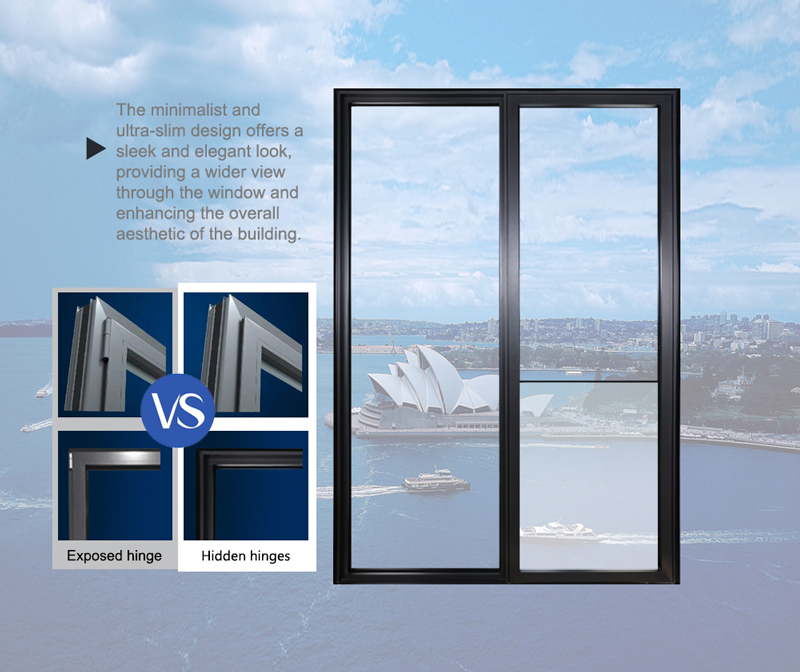

The minimalist and ultra-slim design offers a sleek and elegant look, providing a wider view through the window and enhancing the overall aesthetic of the building.

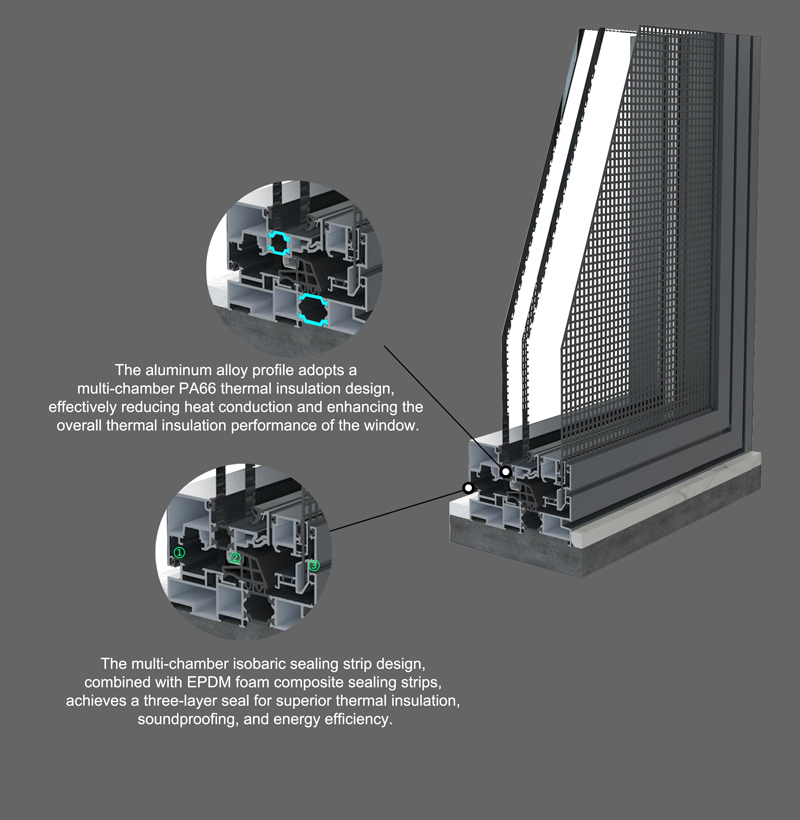

The aluminum alloy profile adopts a multi-chamber PA66 thermal insulation design, effectively reducing heat conduction and enhancing the overall thermal insulation performance of the window.

The multi-chamber isobaric sealing strip design, combined with EPDM foam composite sealing strips, achieves a three-layer seal for superior thermal insulation, soundproofing, and energy efficiency.

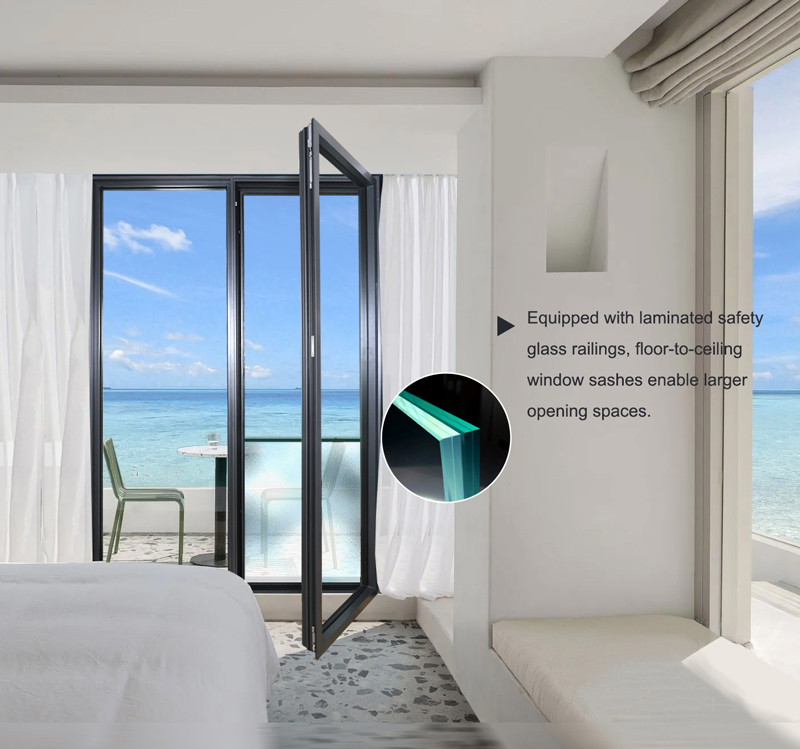

Equipped with laminated safety glass railings, floor-to-ceiling window sashes enable larger opening spaces.

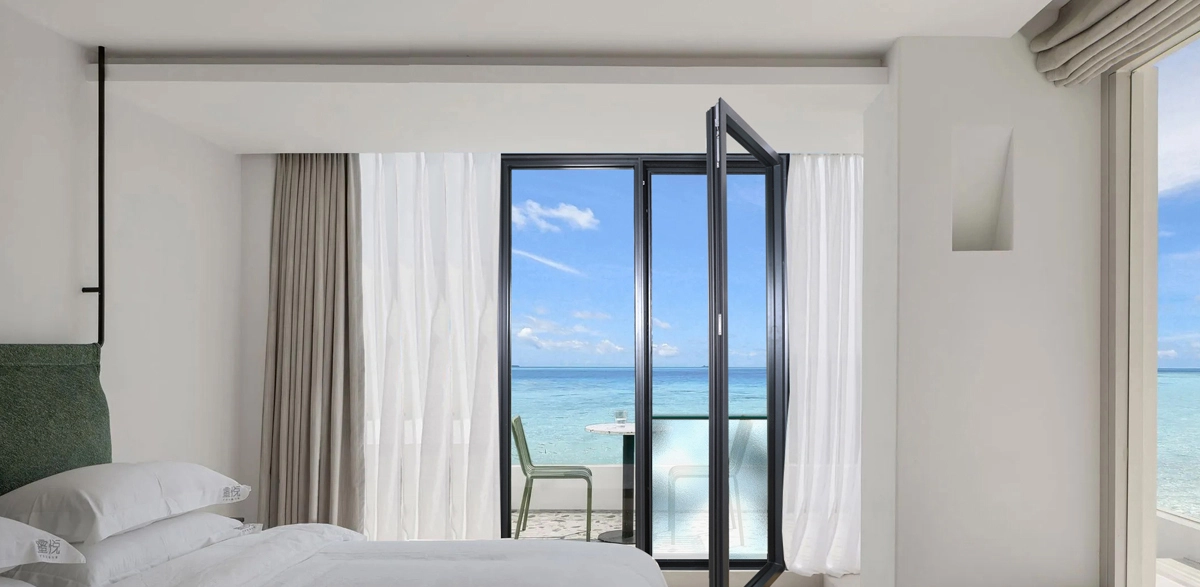

casement-window-for-bathroom

Specifications of AE118 Series Thermal Break Casement Window Series



Opening type

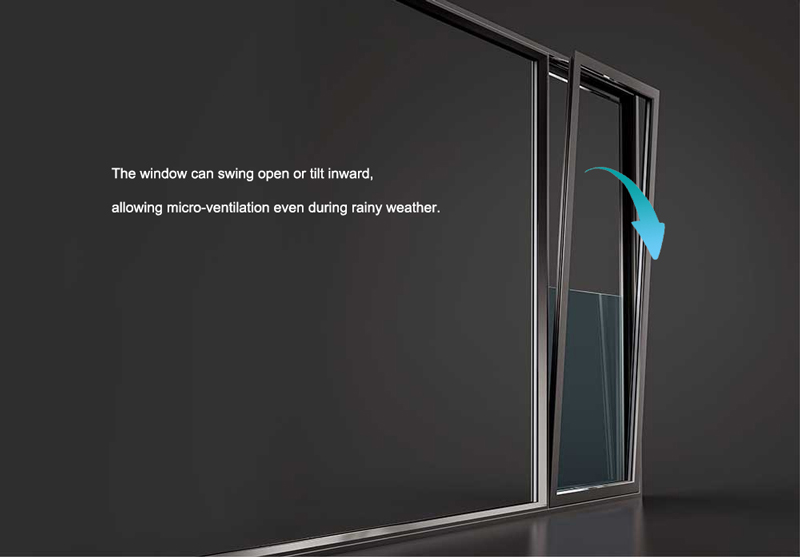

inward/ outward casement、tilt & turn、awning

Surface treatment

Incorporating electrostatic powder coating surface treatment, with a quality guarantee of 7 years.

Common color


Monument, black, white, available in special customized color

Aluminium Profile thickness

Main profile of 1.8mm

Thermal insulation design

Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance

Sealing Strips Configuration

EPDM soft and hard co-extruded

sealing strip

Glass configuration

Standard 6mm + 27Ar + 6mm IGU glazed, optional total thickness up to 39 ~ 52mm Multi-Argon gas filled glazed

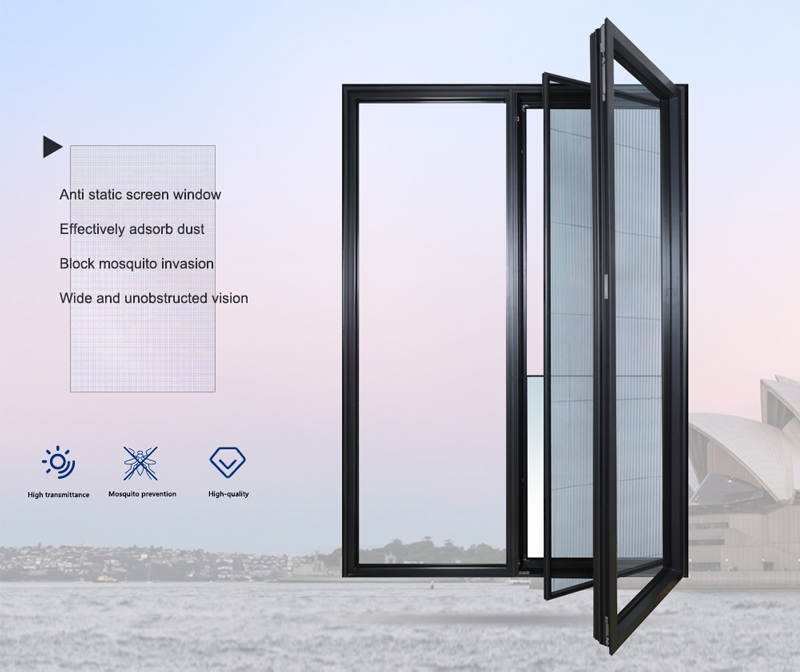

Flyscreen configuration

Optional openable flyscreen

Combined U value

Minimum combined U value: 1.6 W/m2*K




Advantages of AE118 Series Thermal Break Casement Window Series


Advantages of AE118 Series Thermal Break Casement Window Series

Advantages of AE118 Series Thermal Break Casement Window Series

Advantages of AE118 Series Thermal Break Casement Window Series

Advantages of AE118 Series Thermal Break Casement Window Series

Advantages of AE118 Series Thermal Break Casement Window Series

Advantages of AE118 Series Thermal Break Casement Window Series

Advantages of AE118 Series Thermal Break Casement Window Series
