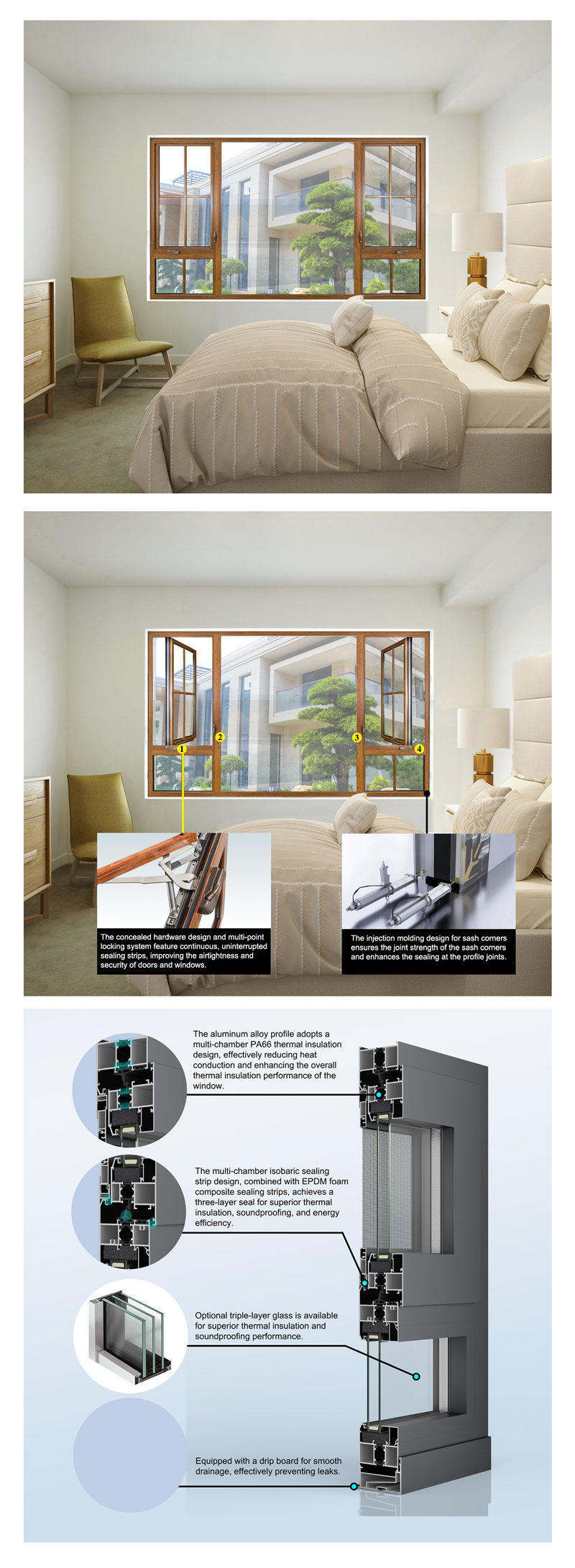

The aluminum alloy profile adopts a multi-chamber PA66 thermal insulation design, effectively reducing heat conduction and enhancing the overall thermal insulation performance of the window.
The multi-chamber isobaric sealing strip design, combined with EPDM foam composite sealing strips, achieves a three-layer seal for superior thermal insulation, soundproofing, and energy efficiency.

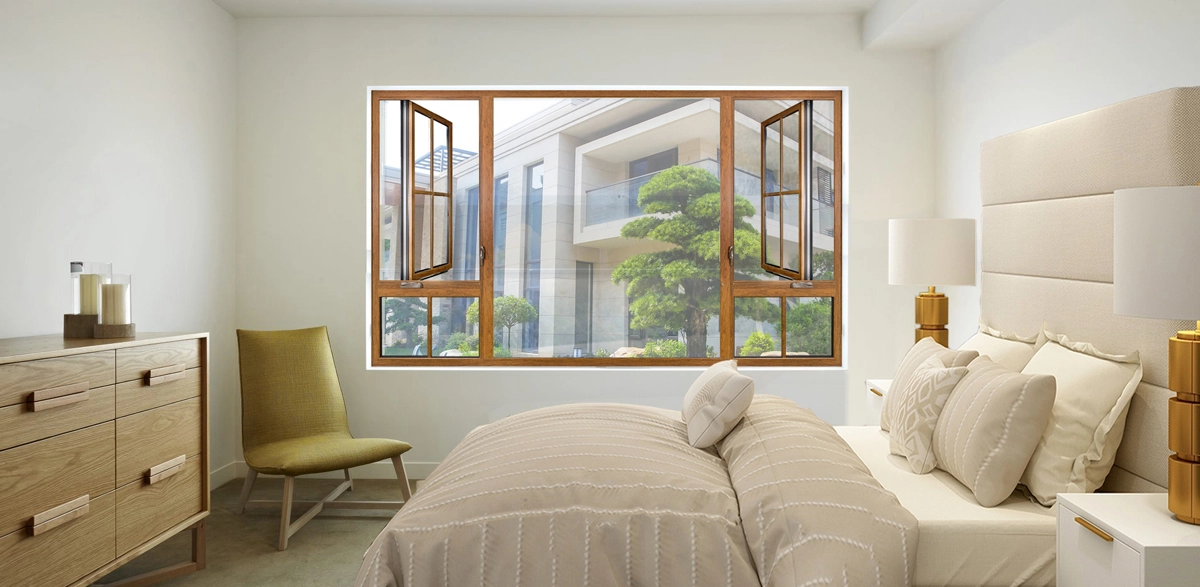

Opening type | outward casement /awning |
Surface treatment | Incorporating electrostatic powder coating surface treatment, with a quality guarantee of 7 years. |
Common color | Monument, black, white, available in special customized color |
Aluminium Profile thickness | Main profile of 1.4mm |
Thermal insulation design | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Sealing Strips Configuration | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Glass configuration | Standard 5mm + 20A + 5mm Argon gas filled double glazed, optional total thickness up to 22 ~ 33mm Multi-Argon gas filled glazed |
Flyscreen | Fixed screen window. |
Combined U value | Minimum combined U value: 2.8W/m2*K |
