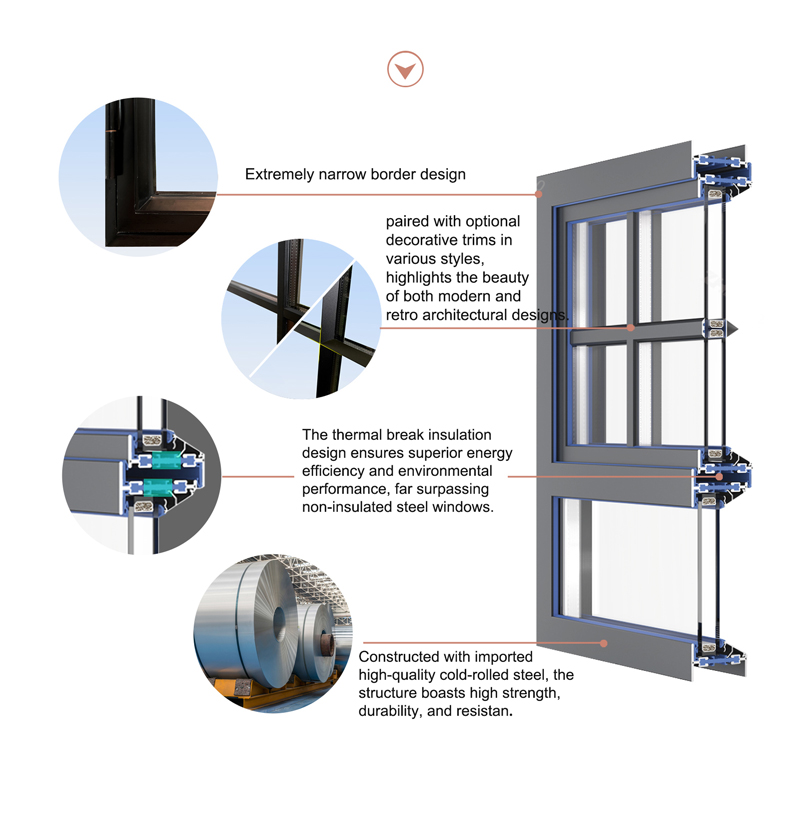

Constructed with imported high-quality cold-rolled steel, the structure boasts high strength, durability, and resistan
The thermal break insulation design ensures superior energy efficiency and environmental performance, far surpassing non-insulated steel windows.
Equipped with decorative sealing strips, it not only enhances the aesthetics but also prevents dust accumulation and makes cleaning easier.

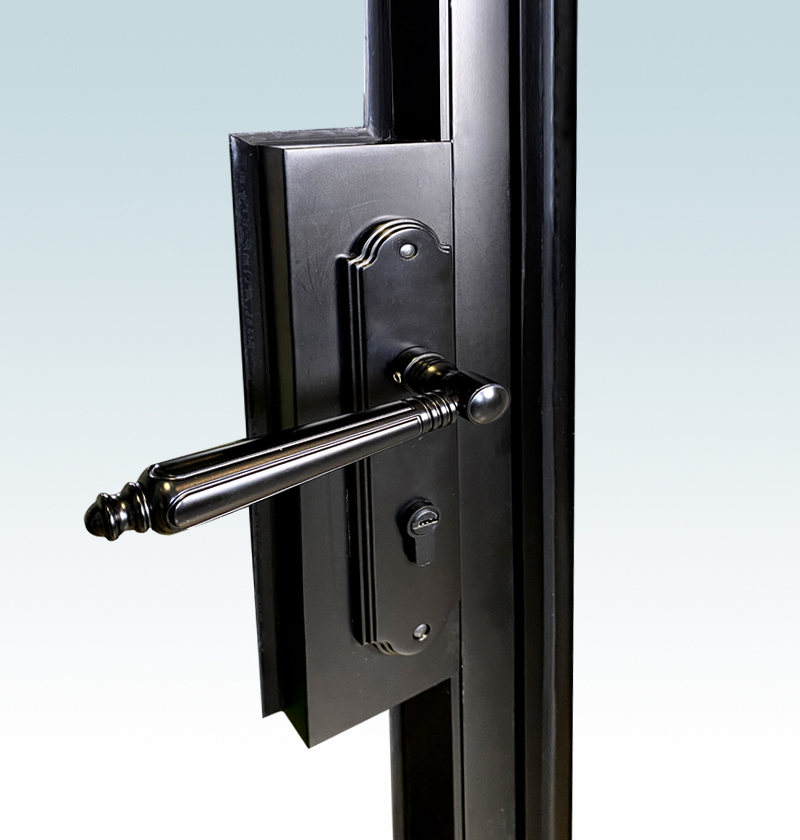

The vintage-style handle, paired with optional decorative trims in various styles, highlights the beauty of both modern and retro architectural designs.
Opening type | Opening inward , opening outward, |
Surface treatment | Utilizing automotive-grade fluorocarbon spray surface treatment, with a quality guarantee of over 15 years |
Common color | Monument, black, white, available in special customized color |
Aluminium Profile thickness | Main profile of 1.5mm |
Thermal insulation design | GF30% PA66 Glass Fiber Reinforced Nylon + Polyurethane Thermal Insulation Sealing Strips |
Sealing Strips Configuration | Using EPDM sealant strips to achieve better sealing performance |
Glass configuration | Standard 6mm + 12A + 6mm Argon gas filled double glazed, optional total thickness up to 24 ~ 27mm Multi-Argon gas filled glazed |
Combined U value | Minimum combined U value: 2.2 W/m2*K |
