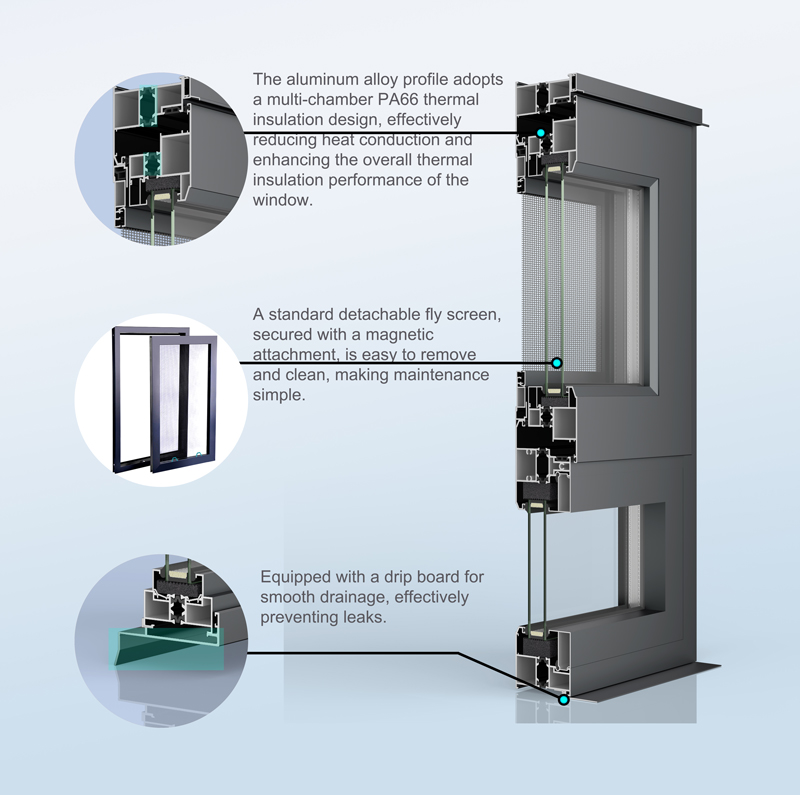

The aluminum alloy profile adopts a multi-chamber PA66 thermal insulation design, effectively reducing heat conduction and enhancing the overall thermal insulation performance of the window.
The multi-point locking system provides enhanced security and sealing performance.

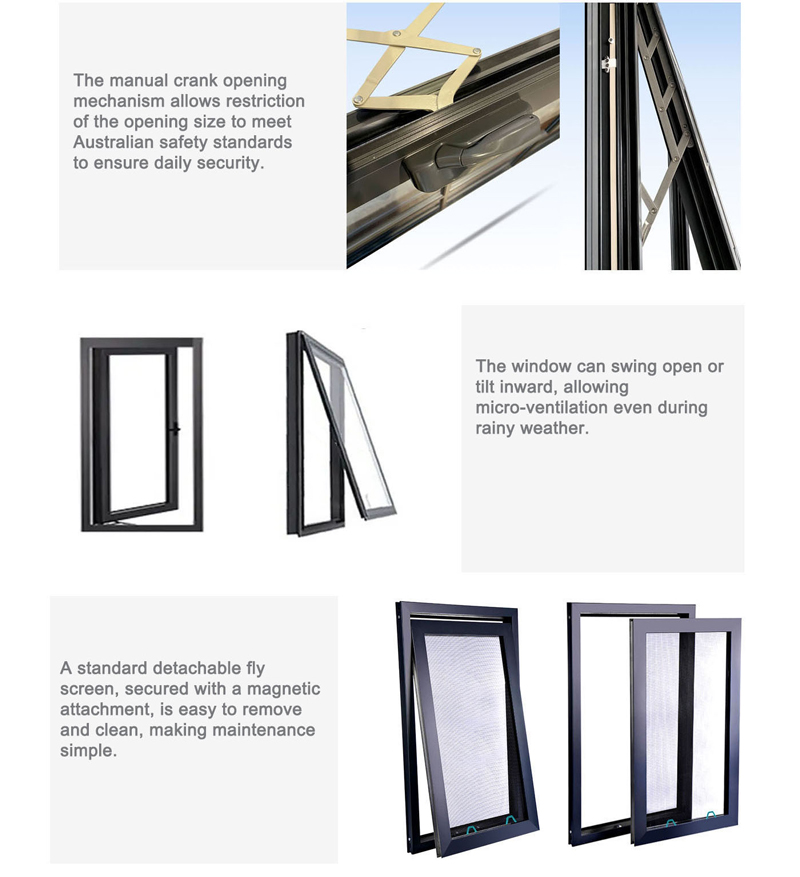

The manual crank opening mechanism allows restriction of the opening size to meet Australian safety standards to ensure daily security.
Opening type | outward casement /awning |
Surface treatment | Incorporating electrostatic powder coating surface treatment, with a quality guarantee of 7 years. |
Common color | Monument, black, white, available in special customized color |
Aluminium Profile thickness | Main profile of 1.4mm |
Thermal insulation design | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Sealing Strips Configuration | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Glass configuration | Standard 5mm + 20A + 5mm Argon gas filled double glazed, optional total thickness up to 22 ~ 33mm Multi-Argon gas filled glazed |
Flyscreen | Fixed screen window. |
Combined U value | Minimum combined U value: 2.8W/m2*K |
