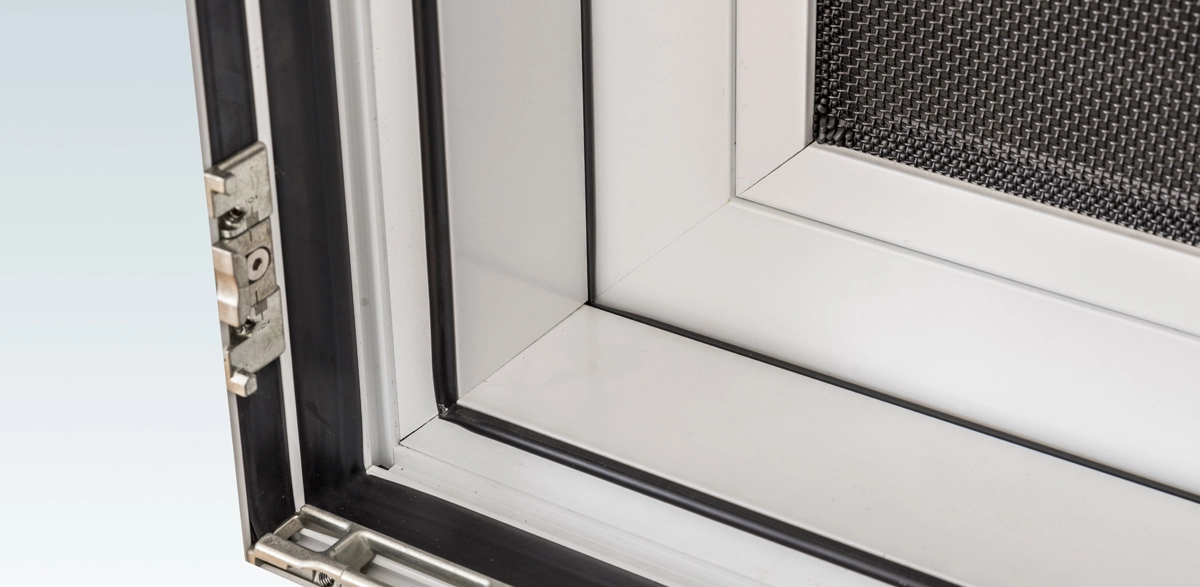

The concealed hardware design and multi-point locking system feature continuous, uninterrupted sealing strips, improving the airtightness and security of doors and windows.
The injection molding design for sash corners ensures the joint strength of the sash corners and enhances the sealing at the profile joints.
Optional triple-layer glass is available for superior thermal insulation and soundproofing performance.

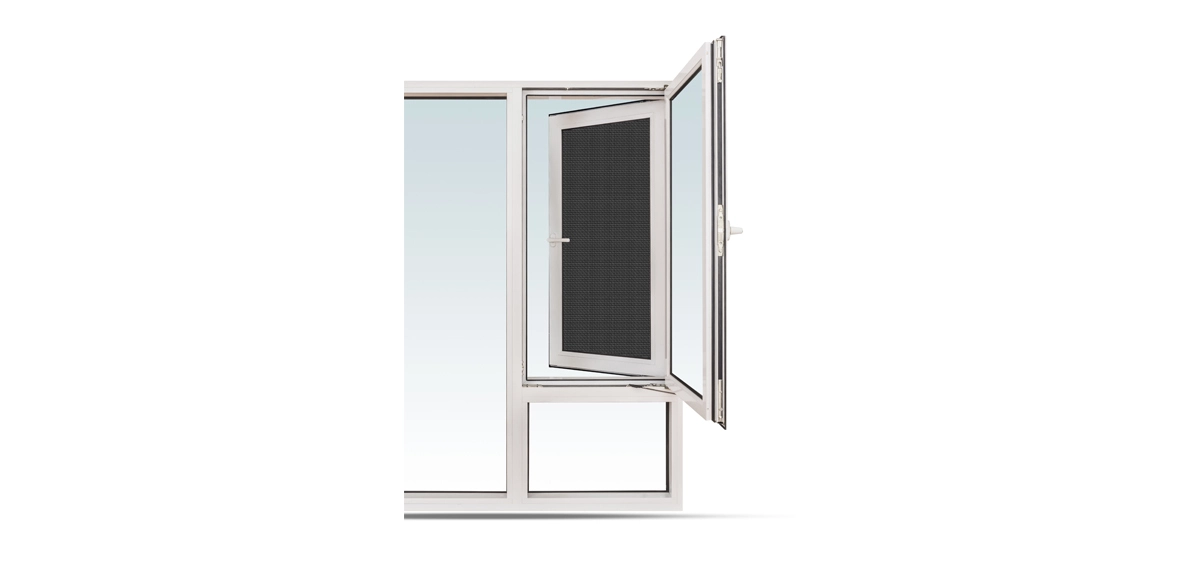

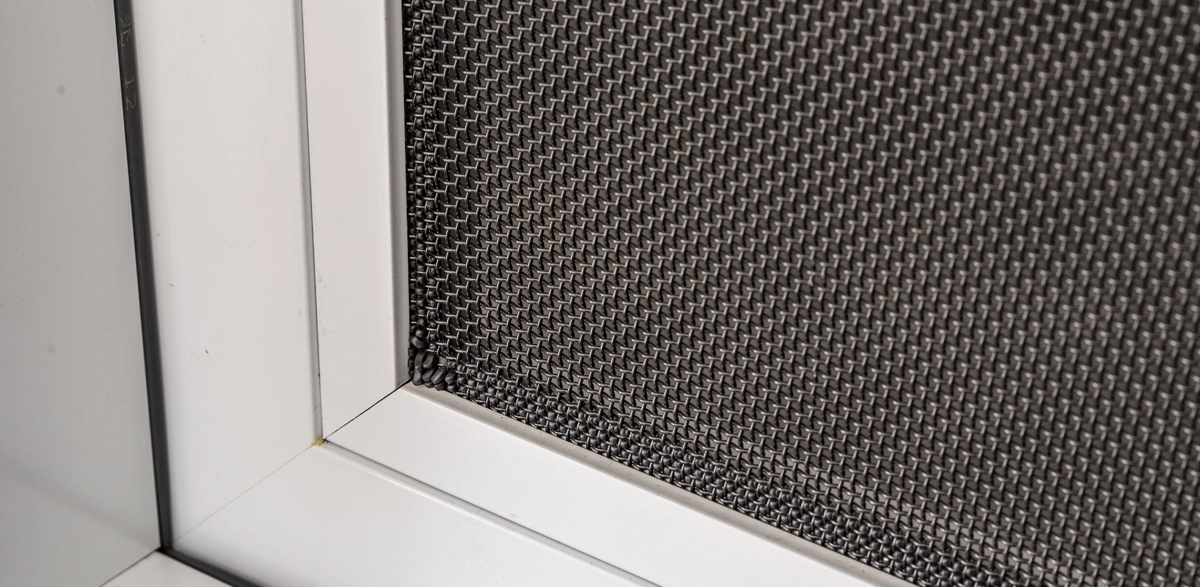

The integrated window and screen design features stainless steel mesh, offering mosquito and insect prevention as well as added anti-theft functionality.

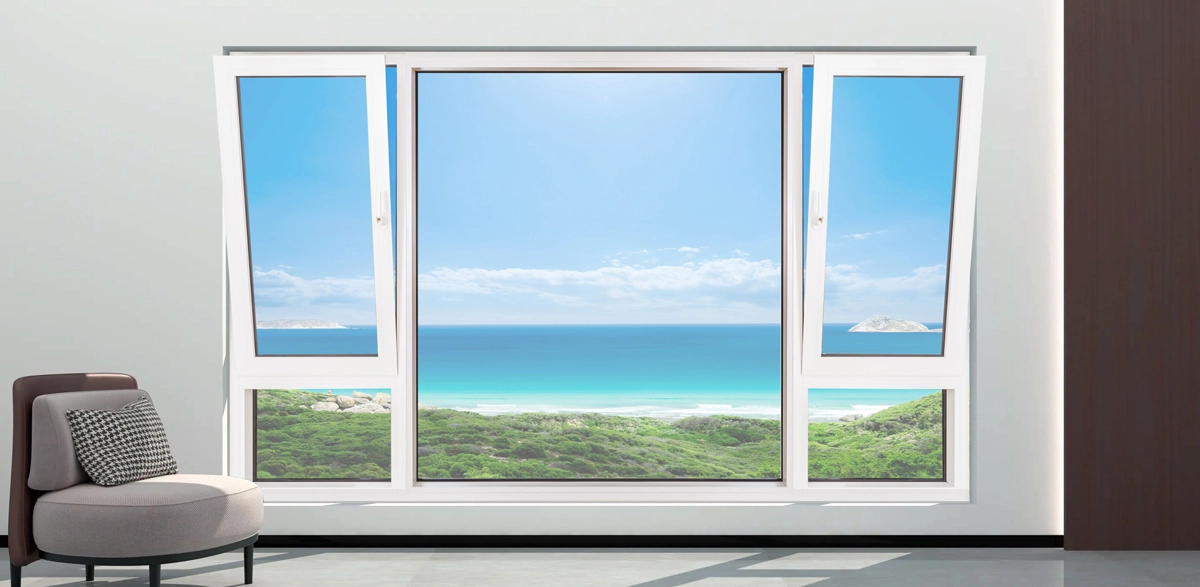

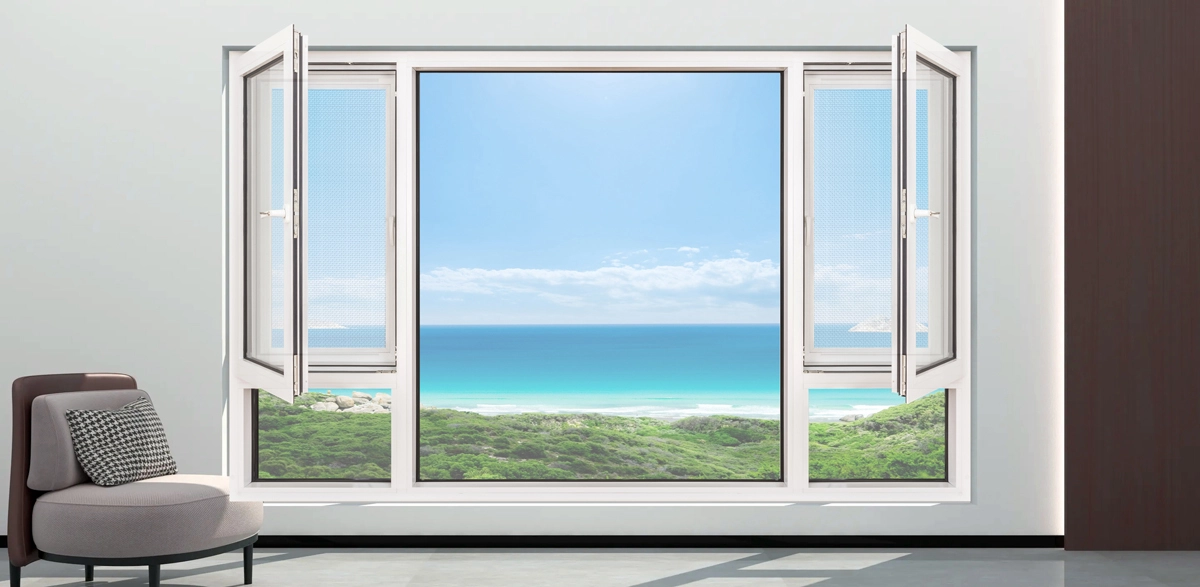

Opening type | Opening inward , opening outward, Tilt & Turn windows |
Surface treatment | Incorporating electrostatic powder coating surface treatment, with a quality guarantee of 7 years. |
Common color | Monument, black, available in special customized color |
Aluminium Profile thickness | Main profile of 1.8mm |
Thermal insulation design | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Sealing Strips Configuration | EPDM soft and hard combined sealing strip |
Glass configuration | Standard 5mm + 12A + 5mm Argon gas filled double glazed, optional total thickness up to 22 ~ 33mm Multi-Argon gas filled glazed |
Flyscreen | Casement window(inward opening): optional detachable flyscreen, Casement window(outward opening): optional retractable flyscreen |
Combined U value | Minimum synthetic U value: 2.8W/m2*K |
