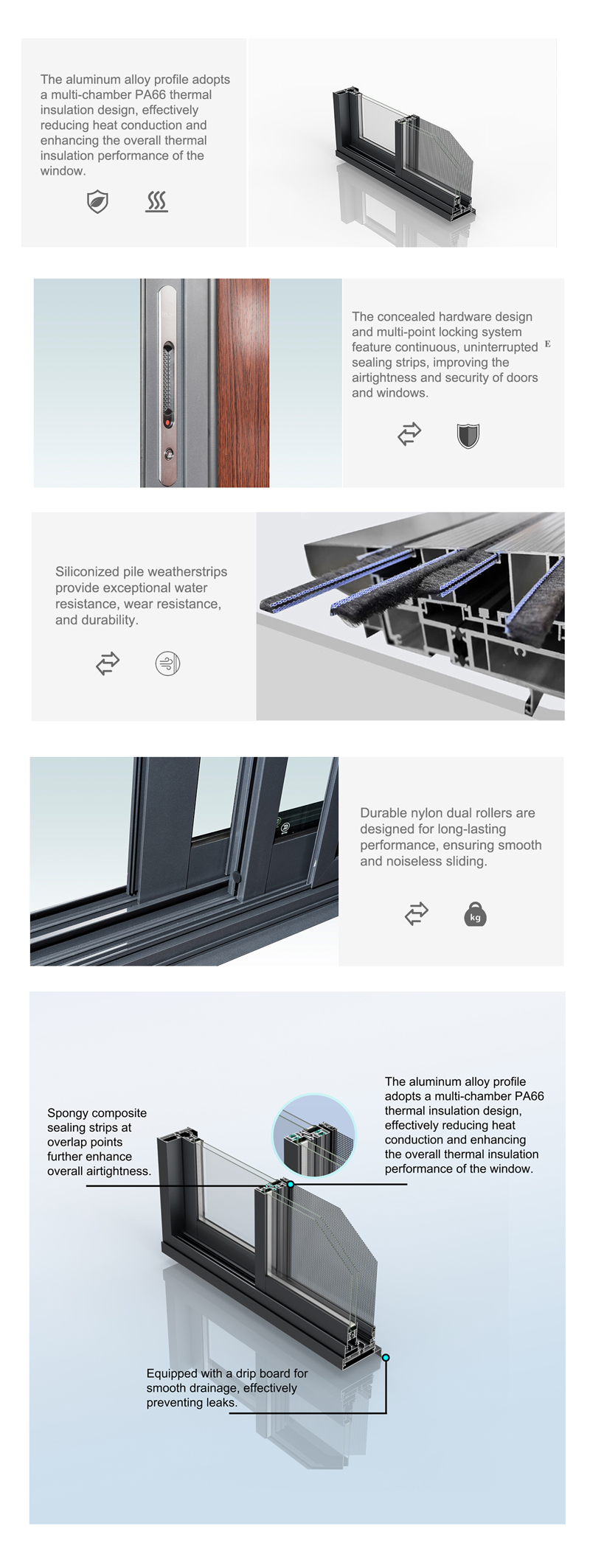

The aluminum alloy profile adopts a multi-chamber PA66 thermal insulation design, effectively reducing heat conduction and enhancing the overall thermal insulation performance of the window.
Spongy composite sealing strips at overlap points further enhance overall airtightness.
Opening type | Sliding window |
Surface treatment | Incorporating electrostatic powder coating surface treatment, with a quality guarantee of 7 years. |
Common color | Monument, black, white, available in special customized color |
Aluminium Profile thickness | Main profile of 1.4mm |
Thermal insulation design | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Sealing Strips Configuration | EPDM soft and hard co-extruded sealing strip |
Glass configuration | Standard 5mm + 12Ar + 5mm IGU glazed, optional total thickness up to 22~ 24mm Multi-Argon gas filled glazed |

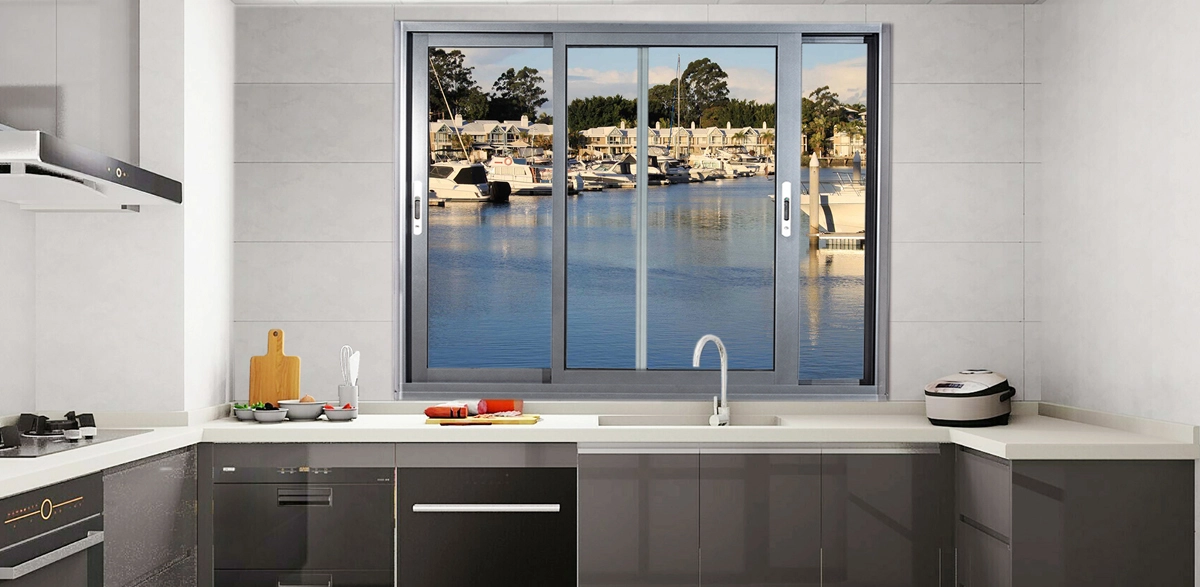

Flyscreen | Optional sliding screen window |
Combined U value | Minimum combined U value: 3.8W/m2*K |
