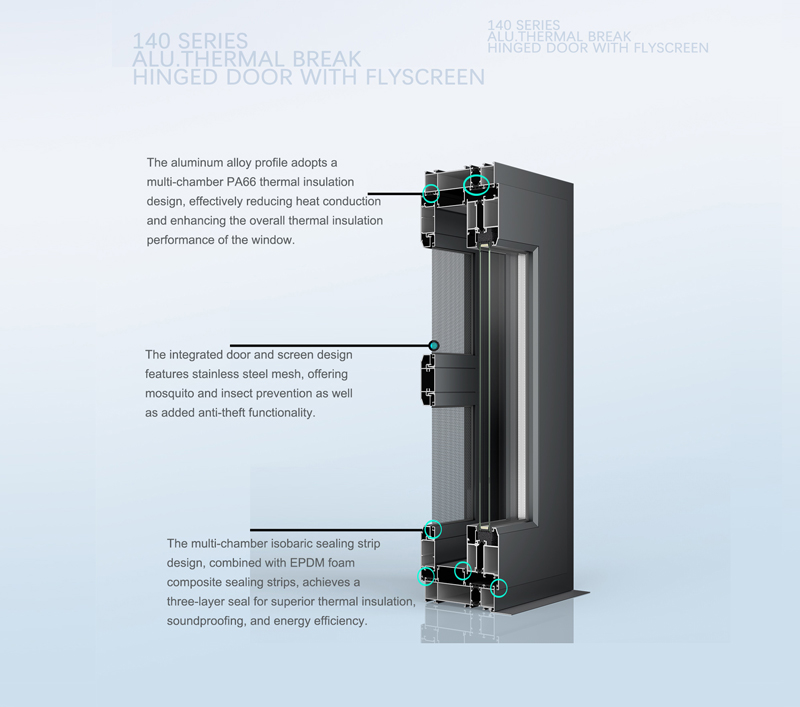

1、The aluminum alloy profile adopts a multi-chamber PA66 thermal insulation design, effectively reducing heat conduction and enhancing the overall thermal insulation performance of the window.
2、The multi-chamber isobaric sealing strip design, combined with EPDM foam composite sealing strips, achieves a three-layer seal for superior thermal insulation, soundproofing, and energy efficiency.

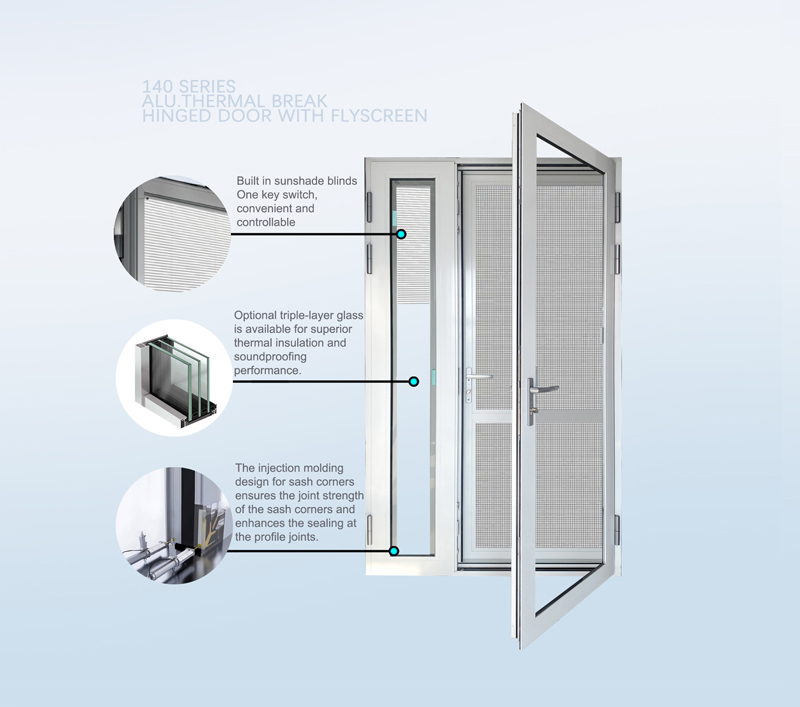

3、The injection molding design for sash corners ensures the joint strength of the sash corners and enhances the sealing at the profile joints.
4、Optional triple-layer glass is available for superior thermal insulation and soundproofing performance.
5、The integrated door and screen design features stainless steel mesh, offering mosquito and insect prevention as well as added anti-theft functionality.
6、Equipped with a drip board for smooth drainage, effectively preventing leaks.
Opening type | Opening inward , opening outward, |
Surface treatment | Incorporating electrostatic powder coating surface treatment, with a quality guarantee of 7 years. |
Common color | Monument, black, white, available in special customized color |
Aluminium Profile thickness | Main profile of 1.8mm |
Thermal insulation design | Incorporating PA66 multi-loculated thermal break strips to provide excellent thermal insulation performance |
Sealing Strips Configuration | Standard configuration with EPDM Isobaric sealing strips + EPDM soft and hard combined sealing strip seal Achieve better sealing performance |
Glass configuration | Standard 5mm + 20A + 5mm Argon gas filled double glazed, optional total thickness up to 22 ~ 33mm Multi-Argon gas filled glazed |
Combined U value | Minimum combined U value:2.4W/m2*K |
